📖 What is Disaster Recovery & Business Continuity?

DR & BC in ClickHouse

Disaster Recovery (DR) is the process of preparing for and recovering from data loss or system failures to minimize downtime and data loss. Business Continuity (BC) ensures your operations continue or quickly resume after a disaster. In ClickHouse, this involves multi-datacenter setups, replication strategies, failover procedures, and data consistency verification.

🌐

Multi-Datacenter Setup

Distribute ClickHouse clusters across geographic regions for high availability and disaster resilience.

🔄

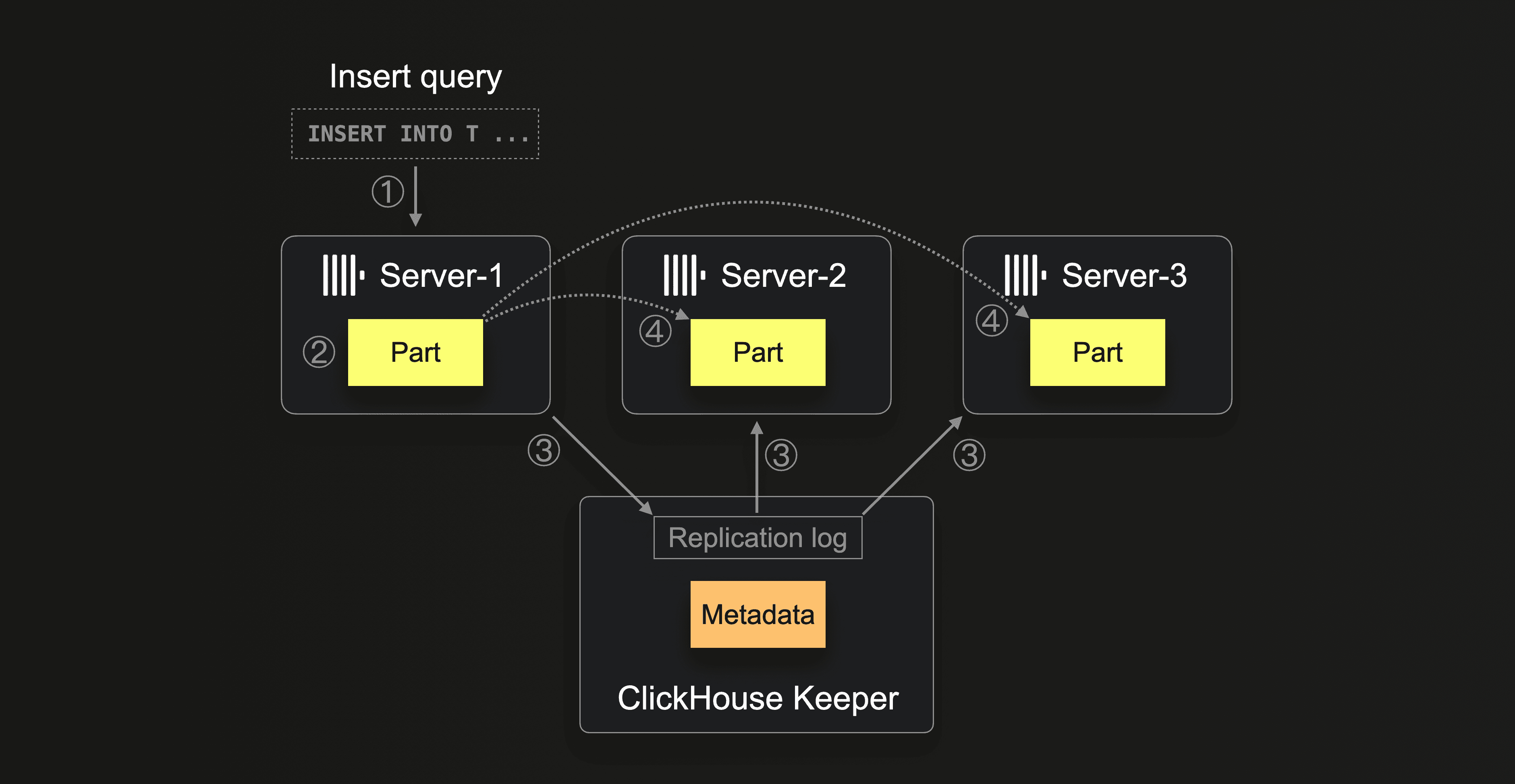

Replication

Real-time data copying between primary and backup systems to minimize data loss (RPO).

⚡

Failover

Automatic or manual switching to backup systems to minimize downtime (RTO).

✔

Consistency Verification

Ensure data remains consistent and complete across all replicas and datacenters.

Key DR/BC Metrics

Metric	Abbreviation	Description
Recovery Time Objective	RTO	Max acceptable downtime (minutes/hours)
Recovery Point Objective	RPO	Max acceptable data loss (minutes/hours)
Availability Target	SLA	99.9%, 99.99%, or 99.999%
Replication Lag	Sync	Real-time vs asynchronous

Active-Passive vs Active-Active

Aspect	Active-Passive	Active-Active
Primary System	Always active, handles all traffic	Both systems active simultaneously
Backup System	Idle, receives replicated data	Active, handles reads/writes in parallel
Failover Time	Minutes to hours	Immediate (no failover needed)
Resource Efficiency	Wastes backup resources	Full utilization, load balanced
Complexity	Simple, low operational overhead	Complex, requires coordination
Cost	Lower initial cost	Higher infrastructure cost
Data Consistency	Easier to maintain	Requires write coordination
Use Case	Most ClickHouse deployments	Mission-critical with high SLA

DR Strategy Levels

Level 1: Backup & Restore

Regular backups, manual recovery on disaster

RTO: Hours to days
RPO: Hours to days
Cost: Low
Complexity: Low

Level 2: Active-Passive Replication

Real-time replication to standby

RTO: Minutes
RPO: Seconds to minutes
Cost: Medium
Complexity: Medium

Level 3: Multi-Datacenter Replication

Replication across geographic regions

RTO: Seconds
RPO: Seconds
Cost: High
Complexity: High

Level 4: Active-Active Geo-Replication

Multi-region active clusters, full redundancy

RTO: Milliseconds
RPO: Milliseconds
Cost: Very High
Complexity: Very High

🚀 Quick Start: DR Setup

1. Basic Active-Passive Setup (2-Cluster)

Setup primary and secondary clusters in different locations with real-time replication.

Primary Datacenter (DC1) - Main Processing

-- DC1: Create replicated table
CREATE TABLE events (
    event_time DateTime,
    user_id UInt64,
    event_type String
) ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/events',
    'dc1-replica1'
)
PARTITION BY toYYYYMM(event_time)
ORDER BY event_time;

-- Insert data
INSERT INTO events VALUES
    (now(), 1001, 'click'),
    (now(), 1002, 'purchase');

Secondary Datacenter (DC2) - Standby (Read-Only)

-- DC2: Create replicated table with same ZooKeeper path
CREATE TABLE events (
    event_time DateTime,
    user_id UInt64,
    event_type String
) ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/events',
    'dc2-replica1'
)
PARTITION BY toYYYYMM(event_time)
ORDER BY event_time;

-- DC2 replica automatically receives data from DC1
-- Queries work on replicated data

2. Configure ZooKeeper for Coordination

# /etc/clickhouse-server/config.d/zookeeper.xml
<zookeeper>
    <node>
        <host>zk1.dc1.example.com</host>
        <port>2181</port>
    </node>
    <node>
        <host>zk2.dc1.example.com</host>
        <port>2181</port>
    </node>
    <node>
        <host>zk3.dc2.example.com</host>
        <port>2181</port>
    </node>
</zookeeper>

3. Monitor Replication Status

-- Check replication lag
SELECT
    database,
    table,
    replica_name,
    absolute_delay,
    relative_delay,
    queue_size
FROM system.replication_queue
WHERE database != 'system';

-- Check replica status
SELECT
    table,
    replica_name,
    is_leader,
    is_readonly,
    log_pointer,
    inserts_in_queue,
    merges_in_queue
FROM system.replicas;

4. Manual Failover Procedure

-- STEP 1: Verify DC2 has all data from DC1
SELECT COUNT(*) FROM events;  -- Run on both DC1 and DC2

-- STEP 2: Stop writes to DC1 (application level)
-- Update application config to point to DC2

-- STEP 3: Wait for replication queue to clear
SELECT database, table, queue_size
FROM system.replication_queue
WHERE queue_size > 0;

-- STEP 4: Promote DC2 to PRIMARY
-- Update connection strings and DNS to point to DC2

-- STEP 5: Verify no data loss
SELECT COUNT(*) FROM events;  -- Should match DC1

-- STEP 6: Resume writes on DC2
-- Application now writes to DC2

💻 DR Commands Reference

Replication Monitoring

-- Check replication lag for all tables
SELECT
    database,
    table,
    replica_name,
    absolute_delay,
    relative_delay,
    queue_size,
    inserts_in_queue,
    merges_in_queue
FROM system.replication_queue
WHERE database != 'system'
ORDER BY absolute_delay DESC;

-- Check replica status details
SELECT
    database,
    table,
    replica_name,
    is_leader,
    is_readonly,
    zookeeper_path,
    log_pointer
FROM system.replicas
WHERE database != 'system';

-- Monitor large queue (potential issues)
SELECT
    database,
    table,
    replica_name,
    queue_size,
    inserts_in_queue,
    merges_in_queue
FROM system.replication_queue
WHERE queue_size > 100;

-- Verify replicas are synced (same log_pointer)
SELECT
    table,
    replica_name,
    log_pointer
FROM system.replicas
WHERE database = 'your_database'
ORDER BY table, replica_name;

Backup & Recovery Commands

-- Create full backup for recovery
BACKUP TABLE events TO '/backup/events_backup';

-- List all backups
SELECT * FROM system.backup_list;

-- Restore from backup
RESTORE TABLE events FROM '/backup/events_backup';

-- Backup to S3 for off-site storage
BACKUP TABLE events TO 's3://my-bucket/clickhouse/backup';

-- Backup all databases
BACKUP DATABASE mydb TO '/backups/mydb';

✨ DR & BC Best Practices

1. RTO/RPO Planning

❌ No DR Planning

-- No replication
CREATE TABLE events (...)
ENGINE = MergeTree();

-- No backup strategy
-- Hope your data is safe!

Risk: Data loss, weeks to recover, millions in losses

✅ Good DR Strategy

-- Define RTO/RPO
-- RTO: 15 minutes
-- RPO: 1 minute

-- Active-passive replication
CREATE TABLE events (...)
ENGINE = ReplicatedMergeTree(...)

-- Automated backups
-- Daily full backups
-- Hourly incremental backups

Benefit: Quick recovery, minimal data loss, business continuity

2. Multi-Datacenter Setup

Optimal Architecture
Use cross-datacenter ZooKeeper quorum (5 total: 3 in DC1, 2 in DC2)
Replicate all tables automatically to standby cluster
Use DNS alias for connection strings (easy failover)
Monitor replication lag continuously
Test failover regularly (monthly)

3. Active-Active Setup (Advanced)

When to Use Active-Active

Mission-critical systems requiring 99.999% uptime
Geographic load balancing across regions
Need to serve queries during disaster scenario
High cost tolerance for infrastructure

Challenges

Write coordination required (prevents conflicts)
Network latency between datacenters (usually 50-200ms)
Complexity in failover/failback procedures
Eventual consistency considerations

4. Failover Procedures

Automated Failover Checklist

Monitor primary cluster health continuously
Detect failure (leader down, replication lag > threshold)
Verify secondary is healthy and has all data
Update DNS to point to secondary (30 second TTL)
Notify operations team and stakeholders
Update application config (circuit breaker)
Monitor secondary for anomalies
Begin investigation of primary failure

5. Data Consistency Verification

-- Compare row counts across all replicas
SELECT
    database,
    table,
    replica_name,
    COUNT(*) as row_count
FROM system.replicas r
JOIN (SELECT database, table, COUNT(*) as cnt FROM your_table GROUP BY 1, 2) t
    ON r.database = t.database AND r.table = t.table
GROUP BY database, table, replica_name
ORDER BY database, table;

-- Run checksums to verify data integrity
SELECT
    database,
    table,
    sum(rows) as total_rows,
    sum(bytes_on_disk) as total_bytes
FROM system.parts
WHERE active AND database NOT IN ('system')
GROUP BY database, table;

6. DR Testing & Drills

Monthly DR Drill Procedure
Pre-test: Get approval from stakeholders
Baseline: Document current metrics (row counts, query latency)
Simulate primary failure: Temporarily down primary nodes
Initiate failover: Switch traffic to secondary
Validate: Run sample queries, verify no data loss
Load test: Simulate user traffic, monitor performance
Document issues: Note any problems or anomalies
Failback: Restore primary and switch back
Post-mortem: Review and improve DR procedures

7. Geo-Replication Considerations

Network Latency Impact

50-100ms: Acceptable for most setups
100-200ms: May require optimization
200ms+: Async replication recommended
Use network optimization (dedicated links, compression)

Data Size Implications

Calculate bandwidth needed: (Daily data size) / 24 hours
Plan for replication + backups
Consider storage costs across regions
Monitor and optimize data growth

🎯 When to Use Each DR Strategy

Level 1: Backups Only

For: Non-critical systems, development, testing

RTO: 4-24 hours
RPO: 4-24 hours
Cost: Minimal
Complexity: Low

Level 2: Active-Passive

For: Production systems, most enterprises

RTO: 15-60 minutes
RPO: 1-5 minutes
Cost: Medium
Complexity: Medium

Level 3: Multi-Datacenter

For: Mission-critical services, SLA > 99.9%

RTO: 1-15 minutes
RPO: 10-60 seconds
Cost: High
Complexity: High

Level 4: Active-Active

For: Ultra-critical systems, SLA = 99.999%

RTO: < 1 second
RPO: < 1 second
Cost: Very High
Complexity: Very High

🏆 Real-World DR Results

15 min

Failover Time

Active-passive setup: Time from primary failure to secondary taking over

< 1 min

RPO Achieved

Data loss limited to < 1 minute with proper replication setup

99.99%

Uptime SLA

Achievable with multi-datacenter + active-passive replication

50%

Cost Savings

Active-passive vs active-active for most deployments

Case Study 1: E-commerce Platform

Challenge

Handle Black Friday traffic spikes (10M events/min) across multiple regions with 99.99% SLA

Solution

Multi-datacenter active-passive setup (US-East primary, US-West standby)
Real-time replication with < 1 second lag
Automated failover detection (health checks every 10 seconds)
Monthly DR drills to ensure readiness

Results

RTO: 2 minutes (vs 4 hours previously)
RPO: 10 seconds (vs 1 day)
Achieved 99.99% uptime consistently
Zero customer-facing incidents in 2 years

Case Study 2: Financial Analytics

Challenge

Regulatory compliance required data recovery within 1 hour; 5TB of daily transaction data

Solution

Hourly full backups to S3
Active-passive replication to secondary datacenter
Automated backup verification (checksums)
Quarterly failover tests with compliance audits

Results

RTO: 45 minutes (well under 1 hour requirement)
RPO: 30 minutes
100% backup success rate
Passed all compliance audits

📋 DR Templates

Template 1: DR Monitoring Dashboard Query

-- Use this query in Grafana/Superset for monitoring
SELECT
    database,
    table,
    replica_name,
    absolute_delay as replication_lag_seconds,
    queue_size,
    inserts_in_queue,
    merges_in_queue,
    is_leader,
    is_readonly,
    now() as check_time
FROM system.replication_queue
WHERE database NOT IN ('system')
ORDER BY absolute_delay DESC;

-- Alert conditions:
-- - absolute_delay > 300 (5 min lag): WARN
-- - absolute_delay > 3600 (1 hour lag): CRITICAL
-- - queue_size > 1000: CRITICAL
-- - replica unavailable: CRITICAL

Template 2: Automated Backup Script

#!/bin/bash
# Daily backup to S3 with retention policy
set -e

BACKUP_DATE=$(date +%Y%m%d_%H%M%S)
BACKUP_DIR="/var/clickhouse/backup/$BACKUP_DATE"
S3_BUCKET="s3://my-backups/clickhouse"
RETENTION_DAYS=30

# Create backup
mkdir -p "$BACKUP_DIR"
clickhouse-client --query="BACKUP DATABASE mydb TO '$BACKUP_DIR'"

# Upload to S3
aws s3 sync "$BACKUP_DIR" "$S3_BUCKET/$BACKUP_DATE"

# Clean old backups (locally keep last 3)
find /var/clickhouse/backup -maxdepth 1 -type d -mtime +3 -exec rm -rf {} \;

# Log backup status
echo "Backup $BACKUP_DATE completed successfully" >> /var/log/backups.log

# Send notification
curl -X POST https://alerts.example.com/backup \
  -d "status=success&date=$BACKUP_DATE&size=$(du -sh $BACKUP_DIR | cut -f1)"

Template 3: Multi-Datacenter Config

# /etc/clickhouse-server/config.d/remote_servers.xml
<yandex>
    <remote_servers>
        <mycluster>
            <shard>
                <!-- Replica 1 in DC1 -->
                <replica>
                    <host>ch1.dc1.example.com</host>
                    <port>9000</port>
                </replica>
                <!-- Replica 2 in DC1 -->
                <replica>
                    <host>ch2.dc1.example.com</host>
                    <port>9000</port>
                </replica>
            </shard>
            <shard>
                <!-- Replica 1 in DC2 -->
                <replica>
                    <host>ch1.dc2.example.com</host>
                    <port>9000</port>
                </replica>
            </shard>
        </mycluster>
    </remote_servers>
</yandex>

🔥 Advanced DR Patterns

1. Cascading Replication (Multi-Tier)

For very large clusters, use cascading replication to reduce network traffic

PRIMARY CLUSTER       REGIONAL REPLICAS      EDGE REPLICAS
(US-East)             (US-West, EU, APAC)    (City-level)

DC1-Primary ────────→ DC2 Replica ────────→ DC3 Replica (read-only)
    │                     │
    │                     └───────→ DC4 Replica (Europe) ──→ DC5 Replica (read-only)
    │
    └────────→ DC6 Replica (APAC) ──→ DC7 Replica (read-only)

Benefits:
- Primary only replicates to 3 regional replicas
- Regional replicas propagate to edge locations
- Reduces network load on primary
- Better latency for edge queries

2. Hybrid Active-Active with Regional Partitioning

-- DC1 handles US region writes
CREATE TABLE events (
    event_time DateTime,
    region LowCardinality(String),
    data String
) ENGINE = ReplicatedMergeTree(...)
PARTITION BY (region, toYYYYMM(event_time))
ORDER BY (region, event_time)
WHERE region IN ('US-East', 'US-West');

-- DC2 handles EU region writes
-- DC3 handles APAC region writes

-- Global view (for queries)
CREATE VIEW events_global AS
SELECT * FROM events
UNION ALL
SELECT * FROM remote('dc2', 'db', 'events')
UNION ALL
SELECT * FROM remote('dc3', 'db', 'events');

Benefits:
- Each region primary handles its writes
- No write conflicts (partitioned by region)
- Can failover region independently
- Near-local latency for reads/writes

3. Automatic Failover with Health Checks

-- Monitoring script that detects failures
#!/bin/bash
PRIMARY="ch-primary.example.com:8123"
SECONDARY="ch-secondary.example.com:8123"
CHECK_INTERVAL=10
FAILURE_THRESHOLD=3

consecutive_failures=0

while true; do
    # Check primary health
    if ! curl -s "http://$PRIMARY/?query=SELECT%201" | grep -q "1"; then
        ((consecutive_failures++))
        if [ $consecutive_failures -ge $FAILURE_THRESHOLD ]; then
            # Trigger failover
            echo "Primary failed $FAILURE_THRESHOLD times. Initiating failover..."

            # Verify secondary is healthy
            if curl -s "http://$SECONDARY/?query=SELECT%20COUNT(*)" > /dev/null; then
                # Update DNS
                aws route53 change-resource-record-sets \
                  --hosted-zone-id ZONE_ID \
                  --change-batch "{ \"Changes\": [{ \"Action\": \"UPSERT\", \"ResourceRecordSet\": { \"Name\": \"clickhouse.example.com\", \"Type\": \"A\", \"TTL\": 30, \"ResourceRecords\": [{\"Value\": \"$SECONDARY\"}] } }] }"

                # Notify team
                slack_notify "Failover completed: traffic now to secondary"
                consecutive_failures=0
            fi
        fi
    else
        consecutive_failures=0
    fi
    sleep $CHECK_INTERVAL
done

4. ZooKeeper Cluster Setup for DR

-- Optimal ZooKeeper setup for disaster recovery
-- Use 5 nodes total:
-- - 3 in primary datacenter (voting members)
-- - 2 in secondary datacenter (voting members or observers)

# zoo.cfg on all servers
server.1=zk1.dc1.example.com:2888:3888
server.2=zk2.dc1.example.com:2888:3888
server.3=zk3.dc1.example.com:2888:3888
server.4=zk1.dc2.example.com:2888:3888
server.5=zk2.dc2.example.com:2888:3888

# For DC2 observers (non-voting):
server.4=zk1.dc2.example.com:2888:3888:observer
server.5=zk2.dc2.example.com:2888:3888:observer

-- Ensures quorum survives primary datacenter failure
-- Voting members: 3 (majority of 5)
-- Can lose primary DC and still have quorum

📚 DR & BC Resources

📘 View in Notion

Access this module in your Notion workspace for note-taking and tracking your progress.

Open in Notion →

📖 Official Documentation

🛠️ Operational Tools

📈 Monitoring & Observability

DR Planning Checklist

Define RTO/RPO: What downtime and data loss can you tolerate?
Assess infrastructure: Multi-datacenter? Network bandwidth?
Choose strategy: Backup, active-passive, or active-active?
Set up monitoring: Replication lag, backup status, failover alerts
Document procedures: Manual failover steps, recovery runbooks
Implement backups: Full + incremental, test restoration
Schedule DR drills: Monthly testing, quarterly with full failover
Train team: Ensure everyone knows the procedures
Automate failover: Reduce manual intervention time
Review & improve: Post-disaster reviews, continuous optimization

🎯 Key Takeaways
DR & BC is not optional - plan for failures
Choose strategy based on RTO/RPO requirements and budget
Active-passive replication is ideal for most ClickHouse deployments
Multi-datacenter setup provides geographic resilience
Regular testing (monthly drills) ensures readiness
Monitoring and alerting are critical for early detection
Automate failover to minimize downtime and human error
Data consistency verification must be part of DR procedures
Plan for bandwidth: geo-replication requires network optimization
Compliance & SLAs drive your DR investment

Next Steps

After completing Module 8, you should be comfortable with:

✅ Understanding DR vs BC concepts and terminology
✅ Planning RTO/RPO based on business requirements
✅ Setting up active-passive replication across datacenters
✅ Configuring ZooKeeper for coordination
✅ Monitoring replication lag and health
✅ Performing manual and automated failover
✅ Verifying data consistency across replicas
✅ Running DR drills and testing procedures
✅ Understanding geo-replication considerations
✅ Choosing appropriate DR strategy for your use case

Ready for Module 9? Next, we'll explore Kafka integration for real-time data ingestion!

📚 Full module reference

Module 8 — Disaster Recovery & Business Continuity

Audience: people with pagers. Prerequisites: Modules 1, 3, 4, 7. Time: ~75 min reading + 30 min hands-on chaos drills.

By the end you will be able to:

Define and measure RTO / RPO for each failure class.
Run six destructive drills against a real cluster without flinching.
Recover a wiped replica from a peer.
Use insert_quorum to harden writes against partial-replica failure.
Sketch a multi-DC topology and cut-over procedure.

1. Failure modes you should be ready for

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Failure modes you should be ready for".

Here is a brief excerpt from the material I'm reading:

"""
DR isn't a ClickHouse feature. It's a set of answers to three questions — **what can break**, **how fast must we be back**, **how much may we lose**. ClickHouse gives you three independent tools — replication, quorum, backups — and each one covers a failure class the others can't touch. The single sentence to carry through the module: > **Replication protects you from hardware loss. Backups protect you from > human and software loss.** `DROP TABLE` replicates. Faithfully. In milliseconds. To every replica in every DC. That's why Modules 7 and 8 are separate modules. ### 1.1 The defense ladder
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

DR isn't a ClickHouse feature. It's a set of answers to three questions — what can break, how fast must we be back, how much may we lose. ClickHouse gives you three independent tools — replication, quorum, backups — and each one covers a failure class the others can't touch. The single sentence to carry through the module:

Replication protects you from hardware loss. Backups protect you from human and software loss.

DROP TABLE replicates. Faithfully. In milliseconds. To every replica in every DC. That's why Modules 7 and 8 are separate modules.

1.1 The defense ladder

Read this top-down and ask after each rung: "what still kills us?" The answer is the reason the next rung exists. Every rung is a purchase, not a best practice — where you stop is a business decision (§2), not an engineering one.

Layer	What you add	Failure it kills	What it costs	Drilled in
0	single node	—	—	—
1	2nd replica per shard	host / disk loss	2× storage	§3, §6
2	`insert_quorum = 2`	silent redundancy loss on write	write availability	§7
3	Keeper quorum across AZs	coordination loss	3–5 more nodes	§5
4	backups → S3	human error, corruption, ransomware	cadence = your RPO	§8
5	replicas in a 2nd DC	site loss	WAN latency on every write	§10

Two corrections the ladder makes for you:

Layer 1 alone is not RPO=0. Replication is async; a host that dies with parts that never left it takes them with it. Layer 2 is the fix.
Losing Keeper quorum loses nothing. Writes and DDL stall, replicated tables go read-only, reads keep serving. Read-only is a safety property, not damage.

1.2 The failure taxonomy

The reference view of the same material — the one to come back to at 3 a.m.

#	Class	Likelihood	Blast radius	Recovery primitive
1	Single replica down	high	none (peer covers)	restart + `SYSTEM SYNC REPLICA`
2	Whole shard down	medium	partial reads	`skip_unavailable_shards = 1`
3	ZK / Keeper quorum lost	medium	writes blocked	restore ZK quorum
4	Replica disk loss	medium	one replica empty	`SYSTEM DROP REPLICA` + recreate
5	Bad DROP / TRUNCATE	high	catastrophic if no backup	RESTORE from backup
6	Whole DC outage	low	total in that DC	failover to peer DC
7	Cluster-wide corruption	very low	catastrophic	RESTORE from backup

2. RTO and RPO

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "RTO and RPO".

Here is a brief excerpt from the material I'm reading:

"""
| Term | Definition                                                          | How CH lets you tune it                                              | | RTO  | **Recovery Time Objective** — how long until service resumes.       | Replicas (instant), backup restore time (minutes-hours), DR cluster (seconds with prior sync). | | RPO  | **Recovery Point Objective** — how much data you can afford to lose. | `insert_quorum` (zero loss in shard), backup cadence (minutes-hours), cross-DC replication (zero with quorum). | A two-replica shard with `insert_quorum = 2` has **RPO=0 within the shard** and *...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Term	Definition	How CH lets you tune it
RTO	Recovery Time Objective — how long until service resumes.	Replicas (instant), backup restore time (minutes-hours), DR cluster (seconds with prior sync).
RPO	Recovery Point Objective — how much data you can afford to lose.	`insert_quorum` (zero loss in shard), backup cadence (minutes-hours), cross-DC replication (zero with quorum).

A two-replica shard with insert_quorum = 2 has RPO=0 within the shard and RTO≈0 for single-replica failure. Add nightly S3 backups and you have RPO≤24h for the bad-DROP case with RTO≤restore time.

3. Drill 1 — single replica down

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Drill 1 — single replica down".

Here is a brief excerpt from the material I'm reading:

"""
The most common, least scary failure. Then on `m8-s1r1`: Recovery: `absolute_delay` should drop to 0. The replication queue drains.
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

The most common, least scary failure.

docker stop m8-s1r2

Then on m8-s1r1:

-- Cluster sees one bad replica
SELECT host_name, errors_count FROM system.clusters
WHERE cluster='clickhouse_cluster' ORDER BY shard_num, replica_num;

-- Reads still work via the surviving replica
SELECT count() FROM dr_distributed;

-- Inserts also work (routed to s1r1, replicated later)
INSERT INTO dr_local VALUES (now(), 999999999, 'during_outage_1');

Recovery:

docker start m8-s1r2

SYSTEM SYNC REPLICA dr_local;        -- on m8-s1r2
SELECT count() FROM dr_local WHERE key >= 999999998;

absolute_delay should drop to 0. The replication queue drains.

4. Drill 2 — whole shard outage

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Drill 2 — whole shard outage".

Here is a brief excerpt from the material I'm reading:

"""
Reads: `skip_unavailable_shards` is a *per-query* policy decision. Use it for dashboards that prefer "stale + visible" over "blank". Don't use it for financial reports. Recovery: bring the shard back, run `SYSTEM SYNC REPLICA` on each replica.
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

docker stop m8-s2r1 m8-s2r2

Reads:

-- Partial — returns rows from shards 1 and 3 only
SELECT count() FROM dr_distributed SETTINGS skip_unavailable_shards = 1;

-- Without it: errors out
SELECT count() FROM dr_distributed;
-- Code: 279. NETWORK_ERROR ... All connection tries failed

skip_unavailable_shards is a per-query policy decision. Use it for dashboards that prefer "stale + visible" over "blank". Don't use it for financial reports.

Recovery: bring the shard back, run SYSTEM SYNC REPLICA on each replica.

5. Drill 3 — ZK quorum partial loss

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Drill 3 — ZK quorum partial loss".

Here is a brief excerpt from the material I'm reading:

"""
A 3-node ZK ensemble survives 1 failure. Lose 1, the cluster keeps working. Lose 2 of 3 and replicated tables go read-only. Drill the safe case: > **Production:** run 3 ZK / Keeper nodes for small clusters, 5 for big > ones. Spread them across availability zones.
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

A 3-node ZK ensemble survives 1 failure. Lose 1, the cluster keeps working. Lose 2 of 3 and replicated tables go read-only.

Drill the safe case:

docker stop m8-zk1

-- Inserts still work — ZK quorum is 2 of 3
INSERT INTO dr_local VALUES (now(), 1, 'zk1_down');
SELECT count() FROM dr_local WHERE payload = 'zk1_down';

docker start m8-zk1

Production: run 3 ZK / Keeper nodes for small clusters, 5 for big ones. Spread them across availability zones.

6. Drill 4 — replica disk loss (the hard one)

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Drill 4 — replica disk loss (the hard one)".

Here is a brief excerpt from the material I'm reading:

"""
What happens: one replica's `/var/lib/clickhouse/data` is gone. ZK still remembers it as a registered replica. Trying to start it fresh would conflict with that ZK record. The recovery procedure: The demo's `run.sh` does exactly this. Look for **DRILL 4** output. > **The mistake to avoid:** simply restarting the wiped node and hoping > ZK reconciles. The ZK record carries baggage (queue entries, log > pointer) that no longer applies — you have to drop it first.
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

What happens: one replica's /var/lib/clickhouse/data is gone. ZK still remembers it as a registered replica. Trying to start it fresh would conflict with that ZK record.

The recovery procedure:

The demo's run.sh does exactly this. Look for DRILL 4 output.

The mistake to avoid: simply restarting the wiped node and hoping ZK reconciles. The ZK record carries baggage (queue entries, log pointer) that no longer applies — you have to drop it first.

7. Drill 5 — `insert_quorum` durability gate

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Drill 5 — insert_quorum durability gate".

Here is a brief excerpt from the material I'm reading:

"""
(no excerpt — section heading was "Drill 5 — insert_quorum durability gate")
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Drill 4 protects against losing data already on disk. insert_quorum protects against writing data that only one replica ever sees.

SET insert_quorum = 2;
SET insert_quorum_timeout_ms = 3000;

-- With both replicas alive: succeeds in <100 ms
INSERT INTO dr_local VALUES (now(), 88888, 'ok_quorum');

Now stop one replica:

docker stop m8-s1r2

-- Same INSERT now FAILS at 3 s
INSERT INTO dr_local VALUES (now(), 88888, 'must_fail');
-- Code: 319. Quorum for previous write has not been satisfied yet.

This is the trade you make: writes block when redundancy isn't available. For RPO=0 systems that's the right choice; for high-throughput analytics it's the wrong one. Choose per table.

8. Drill 6 — restore-from-backup recovery

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Drill 6 — restore-from-backup recovery".

Here is a brief excerpt from the material I'm reading:

"""
The "I dropped the wrong table" or "the prod cluster was corrupted" scenario. Recovery requires a backup. > **Important:** `BACKUP ON CLUSTER` to a *node-local* disk only works > if the destination path exists on every node. For real cluster-wide > backups, point at S3 / GCS instead — see Module 7. The demo runs the > SQL anyway and prints the expected limitation note.
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

The "I dropped the wrong table" or "the prod cluster was corrupted" scenario. Recovery requires a backup.

-- Snapshot now (in real life: this is from your scheduled backups)
BACKUP TABLE dr_local
ON CLUSTER clickhouse_cluster
TO Disk('backups', 'pre_disaster.zip');

-- The disaster
DROP TABLE dr_local ON CLUSTER clickhouse_cluster SYNC;

-- Recovery
RESTORE TABLE dr_local
ON CLUSTER clickhouse_cluster
FROM Disk('backups', 'pre_disaster.zip');

SELECT count() FROM dr_distributed;

Important: BACKUP ON CLUSTER to a node-local disk only works if the destination path exists on every node. For real cluster-wide backups, point at S3 / GCS instead — see Module 7. The demo runs the SQL anyway and prints the expected limitation note.

9. Broken parts — when CH refuses to load a part

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Broken parts — when CH refuses to load a part".

Here is a brief excerpt from the material I'm reading:

"""
If a part on disk is corrupt (bad checksum, missing file), CH refuses to load it on startup and moves it to `detached/<part_name>` under the table directory. You'll see an error like: Recovery:
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

If a part on disk is corrupt (bad checksum, missing file), CH refuses to load it on startup and moves it to detached/<part_name> under the table directory. You'll see an error like:

Part all_5_5_0 is broken. Moved to detached/.

Recovery:

-- See what's in detached/
SELECT name, reason, disk_name
FROM system.detached_parts
WHERE database = 'default' AND table = 'dr_local';

-- If you trust the part: re-attach
ALTER TABLE dr_local ATTACH PART 'all_5_5_0';

-- If you don't: ditch it; the replica will fetch a clean copy from a peer
ALTER TABLE dr_local DROP DETACHED PART 'all_5_5_0' SETTINGS allow_drop_detached = 1;
SYSTEM SYNC REPLICA dr_local;

10. Multi-DC topology (sketch)

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Multi-DC topology (sketch)".

Here is a brief excerpt from the material I'm reading:

"""
The demo runs everything on one Docker host, so it can't truly drill multi-DC failover. Here's what production looks like: Key choices: 1. **One replica per DC per shard.** Each shard's replicas are split across DCs; replication is the cross-DC link. 2. **ZK / Keeper quorum spans 3 sites.** Two DCs + an observer (or a light-weight third site) so a single-DC outage doesn't kill quorum. 3. **`insert_quorum = 2`** for RPO=0. Cross-DC writes synchronously. Plan for 1–10 ms WAN latency on every INSERT. 4. **GEO DNS / Global Load Balancer** routes app traffic. Failover is a CNAME flip + connection-d...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

The demo runs everything on one Docker host, so it can't truly drill multi-DC failover. Here's what production looks like:

Key choices:

One replica per DC per shard. Each shard's replicas are split across DCs; replication is the cross-DC link.
ZK / Keeper quorum spans 3 sites. Two DCs + an observer (or a light-weight third site) so a single-DC outage doesn't kill quorum.
insert_quorum = 2 for RPO=0. Cross-DC writes synchronously. Plan for 1–10 ms WAN latency on every INSERT.
GEO DNS / Global Load Balancer routes app traffic. Failover is a CNAME flip + connection-drain.
select_sequential_consistency = 1 if you also need stale-read protection.

Cut-over runbook (single DC outage):

Detect — alert from health-checking the primary DC LB. Time = 0 s.
Decide — operator/automation flips DNS to DC2. Time = 30–120 s (TTL).
Verify — DC2 endpoints serving traffic; reads/writes returning.
Drain — once DC1 is healthy, app traffic gradually shifted back.

11. The hands-on demo

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "The hands-on demo".

Here is a brief excerpt from the material I'm reading:

"""
### Container map | Role        | Container | Host HTTP | Host TCP | | Shard 1 R1  | `m8-s1r1` | 8123      | 9000     | | Shard 1 R2  | `m8-s1r2` | 8124      | 9001     | | Shard 2 R1  | `m8-s2r1` | 8125      | 9002     | | Shard 2 R2  | `m8-s2r2` | 8126      | 9003     | | Shard 3 R1  | `m8-s3r1` | 8127      | 9004     | | Shard 3 R2  | `m8-s3r2` | 8128      | 9005     | | ZK 1/2/3    | `m8-zk1/2/3` | (internal) | | ### Execution flow — what runs, in order This module is mostly chaos drills inside `run.sh` itself. Every drill is independent; if one fails, the next still runs. | #  | Step...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Container map

Role	Container	Host HTTP	Host TCP
Shard 1 R1	`m8-s1r1`	8123	9000
Shard 1 R2	`m8-s1r2`	8124	9001
Shard 2 R1	`m8-s2r1`	8125	9002
Shard 2 R2	`m8-s2r2`	8126	9003
Shard 3 R1	`m8-s3r1`	8127	9004
Shard 3 R2	`m8-s3r2`	8128	9005
ZK 1/2/3	`m8-zk1/2/3`	(internal)

Execution flow — what runs, in order

This module is mostly chaos drills inside run.sh itself. Every drill is independent; if one fails, the next still runs.

#	Step	What happens
0	self-bootstrap	`up.sh` brings up the 3-shard × 2-replica cluster with 3-node ZK ensemble (9 containers).
1	`setup.sql` (via `m8-s1r1`)	`ON CLUSTER` creates `dr_local` (ReplicatedMergeTree) and `dr_distributed` on every node.
2	`data.sql` (via `m8-s1r1`)	Inserts 1M rows via the Distributed table.
3	`SYSTEM FLUSH DISTRIBUTED` × 6	Flush spool on every node. Print `baseline rows` count.
4	Drill 1 — Replica failure	`docker stop m8-s1r2`. Print `system.clusters.errors_count`. Read via Distributed (works via `m8-s1r1`). Insert two rows via `m8-s1r1` while `m8-s1r2` is down. `docker start m8-s1r2`, `SYSTEM SYNC REPLICA`, verify `m8-s1r2` has the new rows.
5	Drill 2 — Whole shard outage	`docker stop m8-s2r1 m8-s2r2`. Read with `SETTINGS skip_unavailable_shards = 1` (returns partial). Read without it (errors). Restart shard 2 nodes, `SYSTEM SYNC REPLICA`, verify count restored.
6	Drill 3 — Lose one ZK node	`docker stop m8-zk1`. Insert a row (works — ZK quorum 2/3 still holds). Restart ZK 1.
7	Drill 4 — Replica disk loss	`docker stop m8-s1r2`, wipe its data volume using a throwaway alpine container. Restart it. From `m8-s1r1`: `SYSTEM DROP REPLICA 'm8-s1r2' FROM TABLE dr_local`. From `m8-s1r2`: drop the local table, recreate it pointing at the same ZK path, `SYSTEM SYNC REPLICA` — table rebuilds from peer.
8	Drill 5 — `insert_quorum`	`docker stop m8-s1r2`. Try `INSERT … SETTINGS insert_quorum = 2, insert_quorum_timeout_ms = 3000` — must time out (1/2 replicas alive). Restart, sync, retry — succeeds.
9	Drill 6 — Restore-from-backup	`BACKUP TABLE dr_local ON CLUSTER … TO File('/tmp/dr_local_backup_$$')`. `DROP TABLE … ON CLUSTER`. `RESTORE TABLE … ON CLUSTER FROM File(…)`. Note: cluster nodes don't share `/tmp` in this compose, so the restore step shows the expected "use S3" pointer.

The script is destructive only to its own table (default.dr_local) and m8- containers. Nothing else is at risk.

12. Operational SQL cheatsheet

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Operational SQL cheatsheet".

Here is a brief excerpt from the material I'm reading:

"""
(no excerpt — section heading was "Operational SQL cheatsheet")
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

-- "Is the cluster healthy?"
SELECT cluster, shard_num, replica_num, host_name, errors_count, slowdowns_count
FROM system.clusters WHERE cluster = 'clickhouse_cluster'
ORDER BY shard_num, replica_num;

-- "Replica health"
SELECT database, table, replica_name, queue_size, absolute_delay,
       is_readonly, last_queue_update_exception
FROM system.replicas
WHERE absolute_delay > 0 OR queue_size > 0 OR is_readonly = 1;

-- "Broken parts in detached/"
SELECT database, table, name, reason
FROM system.detached_parts;

-- "Active backups"
SELECT id, name, status, formatReadableSize(total_size), num_files
FROM system.backups
WHERE status NOT IN ('BACKUP_CREATED', 'RESTORED', 'BACKUP_FAILED', 'RESTORE_FAILED');

-- "Force a stuck replica"
SYSTEM RESTART REPLICA dr_local;
SYSTEM SYNC REPLICA dr_local;

13. The DR runbook template

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "The DR runbook template".

Here is a brief excerpt from the material I'm reading:

"""
Customise per environment. Copy this into your wiki: | Step | What                                                                  | Command / system                                  | Owner       | Time bound | | 1    | Detect: monitoring fires for replication lag / errors                 | Prometheus alert → PagerDuty                      | on-call     | < 1 min    | | 2    | Triage: identify failure class from §1                                | `system.clusters` / `system.replicas`             | on-call     | < 5 min    | | 3    | Decide: in-place recovery vs failover...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Customise per environment. Copy this into your wiki:

Step	What	Command / system	Owner	Time bound
1	Detect: monitoring fires for replication lag / errors	Prometheus alert → PagerDuty	on-call	< 1 min
2	Triage: identify failure class from §1	`system.clusters` / `system.replicas`	on-call	< 5 min
3	Decide: in-place recovery vs failover	runbook table	on-call lead	< 10 min
4	If in-place: run drill from §3-§7	this README's drills	on-call	< 30 min
5	If failover: GEO DNS flip + drain	DNS console / load balancer	networking	< 15 min
6	Verify: synthetic write+read at end-to-end check	smoke test query	on-call	< 5 min
7	Postmortem: incident timeline + remediations	doc template	on-call lead	< 24 h

Practise this monthly. The runbook you've never run is fiction.

14. Common pitfalls

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Common pitfalls".

Here is a brief excerpt from the material I'm reading:

"""
| Symptom                                                                       | Cause                                                                                     | Fix                                                                                              | | Wiped replica restarts and immediately errors                                 | ZK still has the old replica record.                                                       | `SYSTEM DROP REPLICA '<host>' FROM TABLE <t>` from a peer first.                                 | | `insert_quorum = 2` rejects writes after one failur...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Symptom	Cause	Fix
Wiped replica restarts and immediately errors	ZK still has the old replica record.	`SYSTEM DROP REPLICA '<host>' FROM TABLE <t>` from a peer first.
`insert_quorum = 2` rejects writes after one failure	Only 1 of 2 replicas reachable.	Set `insert_quorum = 1` temporarily, OR fix the failed replica before continuing.
`skip_unavailable_shards` returns empty for one shard	All replicas of that shard are down.	Restart the shard's replicas.
Restore from backup is slow	Many small parts; or remote storage with high latency.	Use S3 transfer acceleration; do schema-only restore first, then data per-partition.
Replicas drift after `INSERT INTO local` on both	Inserted to local table on both replicas (bypassing replication).	Always insert via Distributed (or one replica). `OPTIMIZE TABLE … FINAL DEDUPLICATE` may help.
Cross-DC replication adds 10× latency to writes	WAN RTT. ZK is across DCs.	Move ZK so its quorum doesn't span the WAN, OR accept the latency for RPO=0.
`BACKUP ON CLUSTER` to local disk fails on some nodes	The path doesn't exist on every node, or each node writes to its own disk.	Use S3 / a shared object store.

15. Talking points for the live session

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Talking points for the live session".

Here is a brief excerpt from the material I'm reading:

"""
1. **You have not tested DR until you've run it.** Run drill 4 live; watch the queue drain. 2. **`SYSTEM DROP REPLICA` is the magic word.** Most "stuck replica" incidents resolve with this + recreate. 3. **`skip_unavailable_shards`** is a per-query *policy*. Make the choice deliberately, per dashboard. 4. **`insert_quorum`** is the RPO=0 knob. Demo drill 5 — the INSERT genuinely refuses. 5. **Backups + replication ≠ same thing.** Replication protects hardware loss; backups protect human + software loss. 6. **Multi-DC** is a planning project, not a configuration. Show the topology diagram; disc...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

You have not tested DR until you've run it. Run drill 4 live; watch the queue drain.
SYSTEM DROP REPLICA is the magic word. Most "stuck replica" incidents resolve with this + recreate.
skip_unavailable_shards is a per-query policy. Make the choice deliberately, per dashboard.
insert_quorum is the RPO=0 knob. Demo drill 5 — the INSERT genuinely refuses.
Backups + replication ≠ same thing. Replication protects hardware loss; backups protect human + software loss.
Multi-DC is a planning project, not a configuration. Show the topology diagram; discuss the GEO DNS / WAN latency tradeoffs.
Document the runbook. It's the deliverable, not the technology.

16. Going deeper

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Disaster Recovery". I want to deeply understand the section: "Going deeper".

Here is a brief excerpt from the material I'm reading:

"""
- **Module 4** — replication internals; the system tables this module relies on. - **Module 7** — backup mechanics this module restores from. - ClickHouse docs on operational topics: - <https://clickhouse.com/docs/en/operations/backup> - <https://clickhouse.com/docs/en/operations/system-tables/replicas> - A great read: Anil Tatir's "Disaster Recovery Patterns for ClickHouse" (Altinity blog).
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Module 4 — replication internals; the system tables this module relies on.
Module 7 — backup mechanics this module restores from.
ClickHouse docs on operational topics:
https://clickhouse.com/docs/en/operations/backup
https://clickhouse.com/docs/en/operations/system-tables/replicas
A great read: Anil Tatir's "Disaster Recovery Patterns for ClickHouse" (Altinity blog).

🛡️ MODULE 8

DR & BC in ClickHouse

Multi-Datacenter Setup

Replication

Failover

Consistency Verification

Key DR/BC Metrics

Active-Passive vs Active-Active

DR Strategy Levels

Level 1: Backup & Restore

Level 2: Active-Passive Replication

Level 3: Multi-Datacenter Replication

Level 4: Active-Active Geo-Replication

1. Basic Active-Passive Setup (2-Cluster)

Primary Datacenter (DC1) - Main Processing

Secondary Datacenter (DC2) - Standby (Read-Only)

2. Configure ZooKeeper for Coordination

3. Monitor Replication Status

4. Manual Failover Procedure

Replication Monitoring

Backup & Recovery Commands

1. RTO/RPO Planning

2. Multi-Datacenter Setup

Optimal Architecture

3. Active-Active Setup (Advanced)

When to Use Active-Active

Challenges

4. Failover Procedures

Automated Failover Checklist

5. Data Consistency Verification

6. DR Testing & Drills

Monthly DR Drill Procedure

7. Geo-Replication Considerations

Network Latency Impact

Data Size Implications

Level 1: Backups Only

Level 2: Active-Passive

Level 3: Multi-Datacenter

Level 4: Active-Active

Failover Time

RPO Achieved

Uptime SLA

Cost Savings

Case Study 1: E-commerce Platform

Challenge

Solution

Results

Case Study 2: Financial Analytics

Challenge

Solution

Results

Template 1: DR Monitoring Dashboard Query

Template 2: Automated Backup Script

Template 3: Multi-Datacenter Config

1. Cascading Replication (Multi-Tier)

2. Hybrid Active-Active with Regional Partitioning

3. Automatic Failover with Health Checks

4. ZooKeeper Cluster Setup for DR

📘 View in Notion

📖 Official Documentation

🛠️ Operational Tools

📈 Monitoring & Observability

DR Planning Checklist

🎯 Key Takeaways

Next Steps

🐳 Hands-on Docker Demo for this Module

📺 Live demo capture

🗂️ Architecture diagrams

📚 ClickHouse reference visuals

📚 Full module reference

Module 8 — Disaster Recovery & Business Continuity

1. Failure modes you should be ready for

1.1 The defense ladder

1.2 The failure taxonomy

2. RTO and RPO

3. Drill 1 — single replica down

4. Drill 2 — whole shard outage

5. Drill 3 — ZK quorum partial loss

6. Drill 4 — replica disk loss (the hard one)

7. Drill 5 — insert_quorum durability gate

7. Drill 5 — `insert_quorum` durability gate
