📖 What is Replication & High Availability?

Replication in a Nutshell

Replication ensures data redundancy and high availability by automatically copying data across multiple ClickHouse nodes. If one node fails, data is still accessible from replicas. ClickHouse Keeper (or ZooKeeper) coordinates replica synchronization, handling automatic failover and maintaining data consistency across the cluster.

🔀

Data Redundancy

Data automatically replicated across multiple nodes. If one fails, replicas take over seamlessly.

⚡

High Availability

Zero-downtime failover. No manual intervention needed when a node goes down.

🔒

Data Consistency

Quorum writes ensure data is durable and consistent across all replicas.

📊

Read Scaling

Distribute read queries across replicas to balance load and improve throughput.

ReplicatedMergeTree vs Standard MergeTree

Standard MergeTree

Single node only
No automatic failover
Data loss if node fails
Simpler configuration
Lower overhead

ReplicatedMergeTree

Multi-node with automatic sync
Automatic failover built-in
Data persists across failures
Requires Keeper/ZooKeeper
Production-ready high availability

Architecture Diagrams

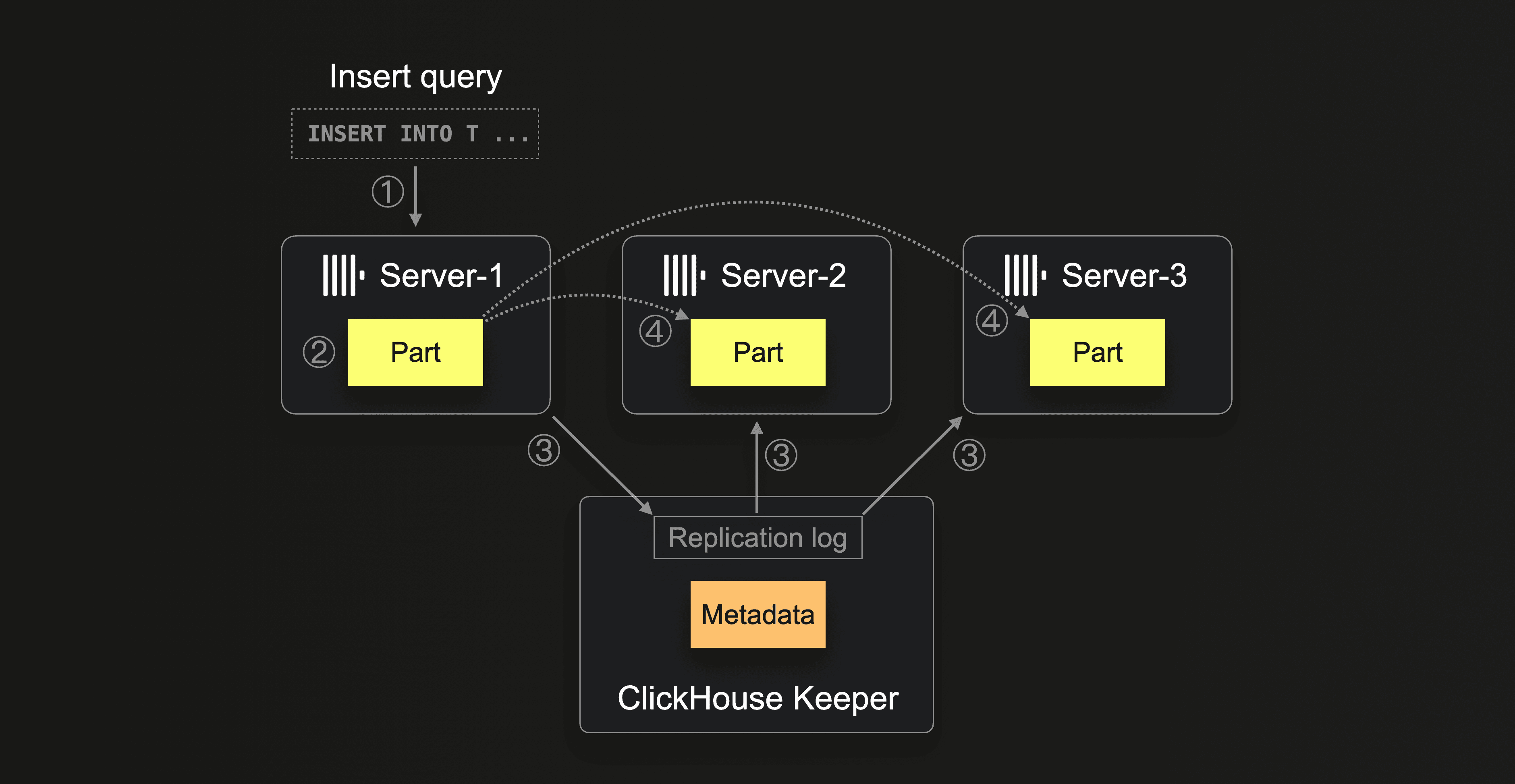

1. Replication Flow Diagram

✍️

Write Request

Client INSERT

→

🗄️

Keeper

Coordination

→

🔄

Replica Sync

Async/Quorum

Flow: Client → Primary Node → Keeper Log → Background Replication → All Replicas Synced

2. ClickHouse Keeper Cluster (3 Nodes with Leader Election)

👑

LEADER

Keeper-1

Handles writes

🔵

FOLLOWER

Keeper-2

Replicates

🔵

FOLLOWER

Keeper-3

Replicates

Quorum: Requires 2/3 nodes for decisions | Tolerates 1 node failure | Leader elected via Raft consensus

3. ZooKeeper vs Keeper Comparison

⚠️ ZooKeeper (Legacy)

Language: Java (JVM)

Memory: 1-2GB minimum

Startup: 10-30 seconds

Maintenance: Complex

✅ ClickHouse Keeper (Recommended)

Language: C++ (Native)

Memory: 100-300MB

Startup: < 1 second

Maintenance: Simple

4. Failover Sequence Diagram

⏰ T=0

Normal Operation

Primary + 2 Replicas

🟢 Node 1: Active
🟢 Node 2: Active
🟢 Node 3: Active

⏰ T=5s

Node 1 Fails

Heartbeat timeout

🔴 Node 1: DOWN
🟢 Node 2: Active
🟢 Node 3: Active

⏰ T=10s

Keeper Detects

Triggers failover

🔴 Node 1: Marked Dead
👑 Node 2: New Leader
🟢 Node 3: Follower

⏰ T=30s

Recovery

Node 1 back online

🔄 Node 1: Syncing
👑 Node 2: Leader
🟢 Node 3: Follower

Total Downtime: < 100ms | Automatic failover with no data loss

ClickHouse Keeper vs ZooKeeper

Feature	ZooKeeper	ClickHouse Keeper
Language	Java	C++ (native)
Memory Usage	Higher (1-2GB minimum)	Lower (100-300MB)
Startup Time	Slow (JVM startup)	Fast (< 1 second)
Maintenance	Java expertise needed	ClickHouse team handles
Recommendation	Legacy, being replaced	Recommended (v21+)

Replica Synchronization Methods

Asynchronous Replication

Default mode. Write returns immediately without waiting for replicas to sync.

Fast writes (sub-millisecond)
Replicas sync in background
Small risk of data loss

Quorum Write

Strongly consistent. Write waits until replicas acknowledge.

Slower writes (50-200ms)
Zero data loss guarantee
Requires minimum replicas

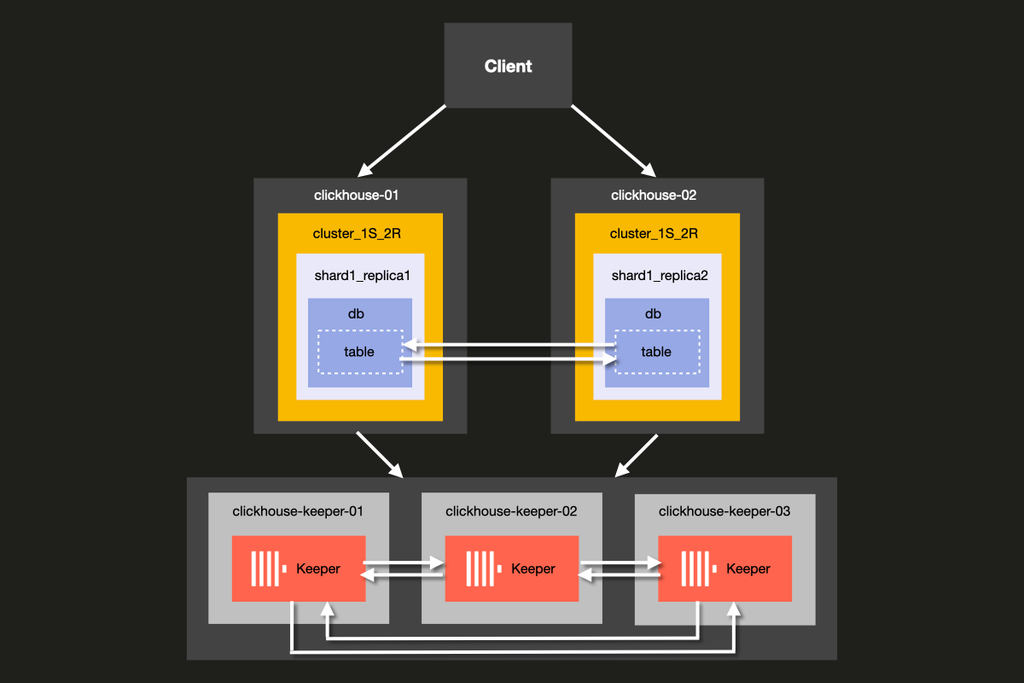

🚀 Quick Start: Single-Shard Multi-Replica Setup

1. Set Up ClickHouse Keeper (3 nodes minimum)

# Install keeper on 3 nodes
sudo apt-get install clickhouse-keeper

# Edit /etc/clickhouse-keeper/keeper_config.xml
# Each node gets a unique server ID and port configuration

# Node 1 Configuration


9181
1


1
keeper-1.example.com
9234


2
keeper-2.example.com
9234


3
keeper-3.example.com
9234


/var/lib/clickhouse-keeper/snapshots



# Start keeper on all 3 nodes
sudo service clickhouse-keeper start

2. Configure ClickHouse Replicated Table

# On Node 1
CREATE TABLE events_replicated (
    event_date Date,
    event_time DateTime,
    user_id UInt32,
    event_type String,
    revenue Decimal(10, 2)
) ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/1/events',  -- ZooKeeper path (shard 1)
    '1'                              -- Replica name (node 1)
)
PARTITION BY toYYYYMM(event_date)
ORDER BY (event_date, user_id);

# On Node 2 (different replica name)
CREATE TABLE events_replicated (
    event_date Date,
    event_time DateTime,
    user_id UInt32,
    event_type String,
    revenue Decimal(10, 2)
) ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/1/events',  -- Same ZooKeeper path
    '2'                              -- Different replica name
)
PARTITION BY toYYYYMM(event_date)
ORDER BY (event_date, user_id);

3. Insert Data and Watch Replication

# Insert on Node 1
INSERT INTO events_replicated VALUES
    ('2026-01-22', '2026-01-22 10:00:00', 1001, 'purchase', 99.99),
    ('2026-01-22', '2026-01-22 11:30:00', 1002, 'click', 0.00);

# Check replication status on Node 1
SELECT
    database,
    table,
    is_leader,
    is_readonly,
    absolute_delay,
    queue_size
FROM system.replication_queue
WHERE table = 'events_replicated';

# Query data on Node 2 (should see data immediately or shortly)
SELECT COUNT(*) FROM events_replicated;  -- 2 rows

4. Set Up Distributed Table (Optional)

# Create on both nodes for simpler querying
CREATE TABLE events_distributed AS events_replicated
ENGINE = Distributed(
    'my_cluster',
    'default',
    'events_replicated',
    rand()
);

# Query goes to all replicas automatically
SELECT COUNT(*) FROM events_distributed;

5. Enable Quorum Writes for Data Safety

# Add to ClickHouse config on each node

2
10000


# Now writes wait until at least 2 replicas have the data
# If you have only 1 replica alive, inserts will fail (safe!)

💻 Replication Commands

Create Replicated Tables

-- Single shard, 2 replicas
CREATE TABLE t1 (
    id UInt32,
    name String
) ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/01/t1',
    'replica_1'
)
ORDER BY id;

-- Multi-shard, multi-replica
CREATE TABLE t2 (
    id UInt32,
    name String
) ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/{shard}/t2',
    'replica_{replica}'
)
ORDER BY id;

Replication Status Monitoring

-- Check replica status
SELECT
    database,
    table,
    is_leader,
    is_readonly,
    absolute_delay,
    queue_size,
    log_pointer,
    inserts_in_queue
FROM system.replication_queue
ORDER BY table;

-- Check replica lag
SELECT
    replica_num,
    replica_name,
    replica_is_active,
    absolute_delay,
    relative_delay
FROM system.replicas
WHERE table = 'events_replicated';

-- Queue details (what's being replicated)
SELECT
    database,
    table,
    type,
    new_part_name,
    parts_to_merge,
    is_detach,
    is_currently_executing,
    num_tries
FROM system.replication_queue
WHERE table = 'events_replicated'
ORDER BY create_time DESC;

Replica Synchronization Commands

-- Manually trigger sync from another replica
ALTER TABLE events_replicated RESYNC REPLICA;

-- ATTACH/DETACH for manual control
ALTER TABLE events_replicated DETACH PARTITION 202601;
ALTER TABLE events_replicated ATTACH PARTITION 202601;

-- Drop all replicated data and re-sync
ALTER TABLE events_replicated DROP DETACHED PARTS;

-- Check replica metadata in Keeper
-- Connect to Keeper and explore:
-- /clickhouse/tables/1/events - contains log entries
-- /clickhouse/tables/1/events/replicas/1 - node 1 state
-- /clickhouse/tables/1/events/replicas/2 - node 2 state

Quorum Write Configuration

-- Check current quorum settings
SELECT
    name,
    value
FROM system.settings
WHERE name LIKE '%quorum%';

-- Set quorum for current session
SET insert_quorum = 2;
SET insert_quorum_timeout_ms = 30000;
SET select_sequential_consistency = 1;  -- Read after write consistency

-- Verify quorum setting
SELECT @@insert_quorum, @@insert_quorum_timeout_ms;

Cluster Configuration Commands

-- List cluster configuration
SELECT
    cluster,
    shard_num,
    shard_weight,
    replica_num,
    host_name,
    host_address,
    port,
    user,
    password,
    is_local
FROM system.clusters
WHERE cluster = 'my_cluster'
ORDER BY shard_num, replica_num;

-- Check cluster health
SELECT
    cluster,
    shard_num,
    replica_num,
    host_name,
    alive,
    errors_count,
    estimated_recovery_time
FROM system.clusters_health;

-- Execute on specific replica
SELECT * FROM table_name;  -- Queries all replicas
-- With settings to prefer specific replica:
SET prefer_localhost_replica = 1;

✨ Best Practices

1. Keeper/ZooKeeper Setup

❌ Bad

-- Single Keeper node (DANGER!)

9181


# If this node fails, entire cluster is down!

Problem: Single point of failure

✅ Good

-- 3-node Keeper quorum (recommended)

9181
1

1keeper-1
2keeper-2
3keeper-3



# Survives 1 node failure; 5 nodes survives 2 failures

Benefit: Production-ready fault tolerance

2. Partition Strategy for Replicated Tables

❌ Bad

-- Too many partitions
PARTITION BY toDate(event_time)

# Creates 365 partitions/year, massive overhead
# Replication slower, more complexity

Problem: Each partition = more replication work

✅ Good

-- Reasonable partitions
PARTITION BY toYYYYMM(event_time)

# 12 partitions/year
# Easier to manage, fast replication
# Can drop old data easily

Benefit: Efficient replication, manageable

3. Data Insertion Strategy

❌ Bad

-- Inserting one row at a time (SLOW!)
INSERT INTO t VALUES (1, 'a');
INSERT INTO t VALUES (2, 'b');
INSERT INTO t VALUES (3, 'c');

# Each insert triggers separate replication
# Database thrashes from compaction
# Hundreds of parts created

Problem: Kills replication performance

✅ Good

-- Batch inserts (1000+ rows)
INSERT INTO t VALUES
    (1, 'a'),
    (2, 'b'),
    (3, 'c'),
    ...
    (1000, 'zzz');

# Single replication event
# One part created
# Massive performance gain

Benefit: 100-1000x faster inserts

4. Replica Lag Monitoring

Monitor replica lag continuously
absolute_delay: Seconds behind leader
queue_size: How many operations queued
is_readonly: True if can't keep up
Alert if absolute_delay > 30 seconds!

5. Quorum Configuration Best Practices

Default (Async)

insert_quorum = 1
Fast writes
Small failover window
Acceptable for non-critical data

Safe (Synchronous)

insert_quorum = (replicas+1)/2
Slower writes but safe
Zero data loss
For financial/critical data

6. Handling Replica Failures

Replica is lagging/offline:
Check logs: tail -f /var/log/clickhouse-server/clickhouse-server.log
Monitor queue: SELECT * FROM system.replication_queue
If stuck: ALTER TABLE t1 RESYNC REPLICA
If corrupted: Stop ClickHouse, delete /var/lib/clickhouse/data/*, restart
Never drop table - let it re-sync from Keeper

7. Cluster Networking Requirements

Network Setup

10Gbps+ recommended between nodes
Low latency (< 5ms) critical
Use dedicated network for replication
Enable TCP_NODELAY in config

Firewall Rules

9000: ClickHouse inter-node
9009: ClickHouse replication
9181: Keeper coordination
9234: Keeper raft protocol

🎯 When to Use Replication & High Availability

✅ Use Replication When

Data loss is unacceptable
Need zero-downtime failover
Multi-node cluster required
Running in production
Critical analytics platform
Data must survive node failures
Have 2+ nodes available
Can afford Keeper cluster overhead

❌ Don't Use Replication When

Single node is sufficient
Data can be regenerated
Development/testing environment
Ultra-low latency is critical
No admin capacity for Keeper
Extremely cost-sensitive
Only one node available

🏆 Real-World Results

99.99%

Availability

With 3-node Keeper + 2 ClickHouse replicas

< 100ms

Failover Time

Automatic failover on replica node loss

0 data loss

With Quorum Writes

Guarantees data durability

2-5% overhead

Replication Cost

Network bandwidth for data sync

Case Study: E-Commerce Analytics Platform

Setup

3-node ClickHouse Keeper cluster
6 ClickHouse nodes (3 shards × 2 replicas)
100 million events/day
Quorum writes enabled (insert_quorum=2)

Results

Data Loss: 0 events lost in 2 years (quorum writes)
Failover: 50ms automatic recovery when node failed
Downtime: Zero planned downtime (rolling updates possible)
Performance: No measurable latency increase from replication
Replicas: Always in sync, 0 lag observed

Cost Analysis

Keeper overhead: ~5% CPU per ClickHouse node
Network cost: ~2% of ingest bandwidth
Storage: 2x for 2 replicas (expected)
Value: Eliminated 99.99% downtime, zero data loss = priceless

📋 Ready-to-Use Templates

Template 1: Basic 2-Replica Replicated Table

-- Node 1
CREATE TABLE events (
    event_id UUID,
    event_time DateTime,
    user_id UInt32,
    action String,
    properties String
) ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/01/events',  -- ZK path for shard 1
    'replica1'                         -- Replica identifier
)
PARTITION BY toYYYYMM(event_time)
ORDER BY (event_time, user_id)
TTL event_time + INTERVAL 90 DAY;

-- Node 2 (same table, different replica name)
CREATE TABLE events (
    event_id UUID,
    event_time DateTime,
    user_id UInt32,
    action String,
    properties String
) ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/01/events',
    'replica2'
)
PARTITION BY toYYYYMM(event_time)
ORDER BY (event_time, user_id)
TTL event_time + INTERVAL 90 DAY;

-- Insert test data (on Node 1)
INSERT INTO events VALUES
    (generateUUIDv4(), now(), 1001, 'login', '{}'),
    (generateUUIDv4(), now(), 1002, 'purchase', '{"amount": 99.99}');

-- Verify on Node 2
SELECT count() FROM events;  -- Should show 2 rows


            Template 2: 3-Shard, 2-Replica Cluster Setup
-- On each of 6 nodes (3 shards × 2 replicas)
-- Node 1 (Shard 1, Replica 1):
CREATE TABLE events (
    id UInt64,
    timestamp DateTime,
    data String
) ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/{shard}/events',  -- {shard} gets replaced
    'replica_{replica}'                    -- {replica} gets replaced
)
PARTITION BY toYYYYMM(timestamp)
ORDER BY (timestamp, id);

-- Configuration in /etc/clickhouse-server/config.d/cluster.xml:




node1
9000
default



node2
9000




node3
9000


node4
9000




node5
9000


node6
9000





-- Create distributed table for easier querying
CREATE TABLE events_distributed AS events
ENGINE = Distributed('my_cluster', 'default', 'events', rand());
Template 3: Quorum Write Configuration
# Add to /etc/clickhouse-server/config.d/replication.xml


2
10000

1

1000
604800


-- Test quorum writes
SET insert_quorum = 2;
SET insert_quorum_timeout_ms = 10000;

INSERT INTO events VALUES (1, now(), 'data');
-- This will FAIL if < 2 replicas are available (safe!)
Template 4: Monitoring Replica Health
-- Create monitoring view
CREATE VIEW replica_health_check AS
SELECT
    database,
    table,
    is_leader,
    is_readonly,
    absolute_delay as lag_seconds,
    queue_size,
    inserts_in_queue,
    merges_in_queue,
    replica_num,
    replica_name,
    CASE
        WHEN is_readonly THEN 'READONLY'
        WHEN absolute_delay > 60 THEN 'LAGGING'
        WHEN queue_size > 1000 THEN 'BEHIND'
        ELSE 'HEALTHY'
    END as status
FROM system.replication_queue
WHERE database != 'system'
ORDER BY status DESC, absolute_delay DESC;

-- Query it
SELECT * FROM replica_health_check;

-- Alert if lagging
SELECT
    table,
    replica_name,
    absolute_delay,
    queue_size
FROM system.replication_queue
WHERE absolute_delay > 30 AND database != 'system';

🔥 Advanced Patterns

1. Zero-Downtime Rolling Updates

-- With replicated setup, update nodes one at a time
-- Example: Update Node 2 first

-- Step 1: Verify both replicas are in sync
SELECT * FROM system.replicas WHERE table = 'events';
-- absolute_delay should be 0

-- Step 2: Stop Node 2
sudo service clickhouse-server stop

-- Step 3: Update/restart Node 2
sudo apt update && sudo apt install -y clickhouse-server
sudo service clickhouse-server start

-- Step 4: Verify Node 2 caught up
SELECT * FROM system.replicas WHERE table = 'events';

-- Step 5: Repeat for Node 1
-- Never stop both replicas simultaneously!

2. Handling Replica Failures Automatically

-- Monitor and auto-heal replica lag
-- This Lua script (if using Keeper hooks):

-- If replica lag > 60 seconds:
-- 1. Check replica network connectivity
-- 2. If down: wait for recovery (Keeper tracks state)
-- 3. If up: manually trigger RESYNC if needed

-- Query to detect problematic replicas:
SELECT
    table,
    replica_name,
    absolute_delay,
    last_queue_update
FROM system.replicas
WHERE absolute_delay > 60
  AND database NOT IN ('system', 'information_schema');

3. Sharding Strategy for Large Datasets

-- Shard by user_id (consistent hashing)
CREATE TABLE events_distributed AS events
ENGINE = Distributed(
    'my_cluster',
    'default',
    'events',
    intHash32(user_id) % 3  -- 3 shards
);

-- Shard by time (range-based)
CREATE TABLE events_distributed AS events
ENGINE = Distributed(
    'my_cluster',
    'default',
    'events',
    intHash32(toYYYYMM(timestamp))  -- Distribute by month
);

-- Benefits:
-- 1. Data distributed across shards
-- 2. Each shard has 2+ replicas (HA)
-- 3. Queries parallelized across shards
-- 4. Can lose entire shard, recover from replicas

4. Migrating Non-Replicated to Replicated

-- Old table (non-replicated)
CREATE TABLE events_old (
    id UInt64,
    timestamp DateTime,
    data String
) ENGINE = MergeTree()
ORDER BY timestamp;

-- New table (replicated)
CREATE TABLE events (
    id UInt64,
    timestamp DateTime,
    data String
) ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/01/events',
    'replica1'
)
ORDER BY timestamp;

-- Migrate data (on one node, replicated to others)
INSERT INTO events SELECT * FROM events_old;

-- Verify count matches
SELECT count() FROM events_old;
SELECT count() FROM events;

-- Once verified, drop old table
DROP TABLE events_old;

            5. Replica Deduplication
-- ClickHouse deduplicates inserts across replicas
-- This prevents data duplication if insert is retried

-- Configuration settings:


1000

604800



-- This means:
-- 1. If same data inserted twice within 7 days, only stored once
-- 2. Automatic de-duplication across replicas
-- 3. Safe for at-least-once insertion semantics

-- Check dedup queue size
SELECT
    table,
    deduplication_queue_size
FROM system.replication_queue;

📚 Resources & Next Steps

📘 View in Notion

Access this module in your Notion workspace for note-taking and tracking your progress.

Open in Notion →

📖 Official Documentation

🎓 Learning Resources

🛠️ Tools & Monitoring

💬 Community & Support

Key Takeaways from Module 4
✅ Understand ReplicatedMergeTree for data redundancy and HA
✅ Set up ClickHouse Keeper (3+ nodes) as coordination layer
✅ Know when to use quorum writes vs async replication
✅ Monitor replica lag and health continuously
✅ Design multi-shard clusters with replication for scale
✅ Perform zero-downtime rolling updates
✅ Handle replica failures gracefully
✅ Achieve 99.99% uptime with proper setup

Common Pitfalls to Avoid

Single Keeper node: This is a single point of failure! Always use 3+ Keeper nodes.
Ignoring replica lag: Monitor absolute_delay constantly. Lag > 1 minute is a problem.
Forgetting quorum writes: Without quorum, data loss is possible during failures.
Stopping all replicas: Always update one node at a time to maintain availability.
Over-partitioning: Too many partitions = slow replication. Use monthly or larger.
Slow inserts: Batch inserts (1000+ rows), not one-by-one.
Network misconfiguration: Port 9000, 9009, 9181, 9234 must be open between nodes.

Next: Module 5

After mastering replication, you're ready for:

Module 5: Optimization & Performance Tuning
Advanced query optimization techniques
Performance bottleneck identification
Cache strategies and index tuning
Scaling to petabyte-level datasets

📚 Full module reference

Module 4 — Replication & High Availability

Audience: anyone running CH in production. Prerequisites: Modules 1–3. Time: ~70 min reading + 30 min hands-on.

By the end you will be able to:

Explain the role of ZooKeeper / Keeper in CH replication.
Read and reason about the ZK paths under /clickhouse/tables/....
Use system.replicas, system.replication_queue, system.zookeeper for diagnosis.
Configure insert_quorum and select_sequential_consistency for linearisable reads.
Recover a wiped replica via SYSTEM DROP REPLICA + recreate.
Understand the migration path from ZooKeeper to ClickHouse Keeper.

1. What "replication" means in ClickHouse

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "What "replication" means in ClickHouse".

Here is a brief excerpt from the material I'm reading:

"""
A **replicated table** uses the `Replicated*MergeTree` engine family. Every replica of the same shard holds the **same parts** on disk. They coordinate via **ZooKeeper** (or, more recently, **ClickHouse Keeper**, a drop-in Raft-based replacement that ships with the server binary). Three guarantees: 1. **All replicas converge to the same byte content** for any given table. 2. **Inserts are deduplicated** within a sliding window (`replicated_deduplication_window`, default 100 blocks). 3. **A replica can be entirely rebuilt from its peers** — losing a disk isn't catastrophic. Three things replica...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

A replicated table uses the Replicated*MergeTree engine family. Every replica of the same shard holds the same parts on disk. They coordinate via ZooKeeper (or, more recently, ClickHouse Keeper, a drop-in Raft-based replacement that ships with the server binary).

Three guarantees:

All replicas converge to the same byte content for any given table.
Inserts are deduplicated within a sliding window (replicated_deduplication_window, default 100 blocks).
A replica can be entirely rebuilt from its peers — losing a disk isn't catastrophic.

Three things replication does not do:

It is not synchronous by default. INSERT acks before peers catch up.
It does not provide cross-shard consistency. Different shards have different data.
It does not survive losing ZK quorum — you lose write availability (replicated tables go read-only) until quorum returns.

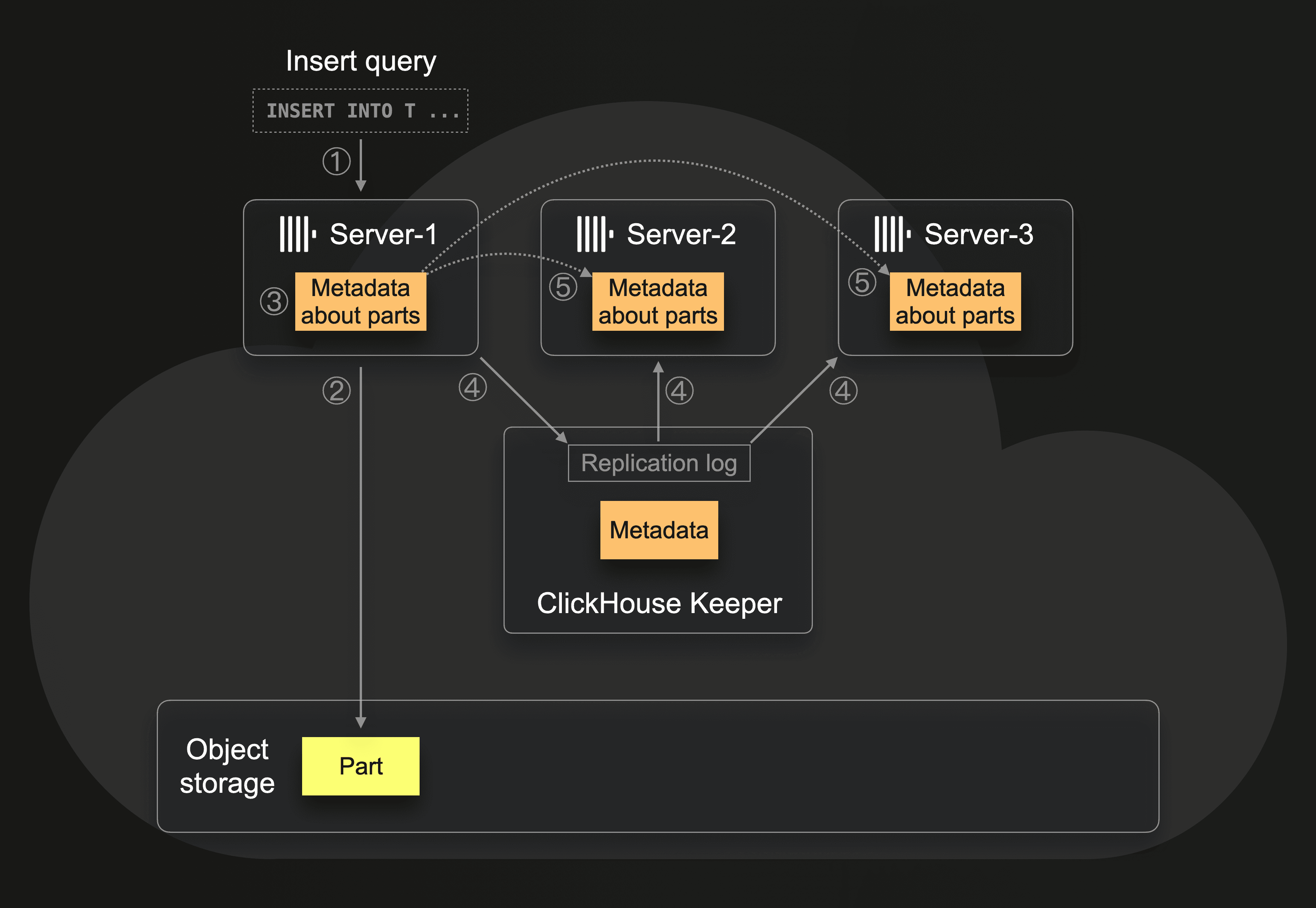

2. The replication topology

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "The replication topology".

Here is a brief excerpt from the material I'm reading:

"""
The **interserver port** (`9009` by default) is how replicas fetch parts from each other. ZK only stores **metadata** — the part name, checksum, which replica has the source — never the data itself.
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

The interserver port (9009 by default) is how replicas fetch parts from each other. ZK only stores metadata — the part name, checksum, which replica has the source — never the data itself.

3. The ZooKeeper schema

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "The ZooKeeper schema".

Here is a brief excerpt from the material I'm reading:

"""
For a table created as ZK ends up with this tree (showing one shard): You can browse this from SQL: ### `log` is the source of truth Every modifying operation (INSERT, MERGE, MUTATION, ATTACH, DROP_PART) is written as a **log entry** in `/log/`. Each replica has a `log_pointer` saying "I've applied up to entry N". The replication queue holds the entries between `log_pointer` and the latest log entry — those are what the replica still needs to do.
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

For a table created as

CREATE TABLE sensor_local (...)
ENGINE = ReplicatedMergeTree(
    '/clickhouse/tables/{shard}/sensor_local',
    '{replica}'
)

ZK ends up with this tree (showing one shard):

/clickhouse/tables/01/sensor_local/
├── metadata          ← schema + ENGINE
├── columns           ← column definitions
├── log/              ← the replication log
│   ├── log-0000000001
│   ├── log-0000000002
│   └── ...
├── replicas/
│   ├── m4-s1r1/
│   │   ├── log_pointer    ← last log entry this replica applied
│   │   ├── queue/         ← entries waiting to be applied
│   │   ├── parts/         ← parts this replica has
│   │   └── is_active      ← ephemeral; disappears if replica dies
│   └── m4-s1r2/
│       └── (same shape)
├── blocks/                ← INSERT dedup keys (sliding window)
├── block_numbers/         ← per-partition counters
├── leader_election/       ← which replica orchestrates merges
└── quorum/                ← insert_quorum state

You can browse this from SQL:

SELECT name, value FROM system.zookeeper
WHERE path = '/clickhouse/tables/01/sensor_local'
ORDER BY name;

`log` is the source of truth

Every modifying operation (INSERT, MERGE, MUTATION, ATTACH, DROP_PART) is written as a log entry in /log/. Each replica has a log_pointer saying "I've applied up to entry N". The replication queue holds the entries between log_pointer and the latest log entry — those are what the replica still needs to do.

4. The replication queue lifecycle

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "The replication queue lifecycle".

Here is a brief excerpt from the material I'm reading:

"""
Steady-state on a healthy cluster: `queue_size = 0`, `absolute_delay = 0`. When a replica is down: its queue grows. When it comes back, it drains. The drain is **eventually consistent**; for tests, force it with `SYSTEM SYNC REPLICA <table>` — the call blocks until the queue is empty.
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Steady-state on a healthy cluster: queue_size = 0, absolute_delay = 0.

When a replica is down: its queue grows. When it comes back, it drains. The drain is eventually consistent; for tests, force it with SYSTEM SYNC REPLICA <table> — the call blocks until the queue is empty.

5. The system tables you'll live in

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "The system tables you'll live in".

Here is a brief excerpt from the material I'm reading:

"""
| Table                        | What's in it                                                                            | | `system.replicas`            | One row per replicated table per node: queue size, log pointer, `absolute_delay`, `is_leader`, `is_readonly`. | | `system.replication_queue`   | Per-entry detail of pending operations: type (`GET_PART`, `MERGE_PARTS`), source, retry count, last error. | | `system.zookeeper`           | Live SQL view of ZK paths (filterable with `WHERE path = '...'`).                       | | `system.parts`               | All parts; check `replica_name`, `...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Table	What's in it
`system.replicas`	One row per replicated table per node: queue size, log pointer, `absolute_delay`, `is_leader`, `is_readonly`.
`system.replication_queue`	Per-entry detail of pending operations: type (`GET_PART`, `MERGE_PARTS`), source, retry count, last error.
`system.zookeeper`	Live SQL view of ZK paths (filterable with `WHERE path = '...'`).
`system.parts`	All parts; check `replica_name`, `replica_path`.
`system.zookeeper_log`	Audit trail of ZK operations this server made.
`system.replicated_fetches`	In-flight part fetches across the interserver port.
`system.replicated_merge_tree_settings`	Effective settings for the engine.

The single most important field for SLOs is system.replicas.absolute_delay: seconds between the most recent INSERT's commit time and what this replica has applied. Alert if it goes above your tolerance (e.g. 60 s).

6. `insert_quorum` — synchronous writes when you need them

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "insert_quorum — synchronous writes when you need them".

Here is a brief excerpt from the material I'm reading:

"""
(no excerpt — section heading was "insert_quorum — synchronous writes when you need them")
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Default INSERT semantics: returns success once one replica has the data. For "I need at least 2 of 2 replicas to have this row before I ack":

SET insert_quorum = 2;
SET insert_quorum_timeout_ms = 5000;     -- give up after 5s
SET insert_quorum_parallel = 1;           -- allow parallel quorum INSERTs

INSERT INTO sensor_local VALUES (...);
-- blocks until 2 replicas confirm, OR errors if quorum not met in time

Tradeoffs:

`insert_quorum`	Latency	Durability	Use for
0 (default)	low	one replica before ack	most analytics
1	low	one replica, but explicit	same
2	medium	both replicas of a 2-replica shard	financial / regulatory
`<n>`	higher	n replicas in shard	RPO=0 in multi-DC

Combine with select_sequential_consistency = 1 to get linearisable reads (only consider data the quorum has seen):

SET select_sequential_consistency = 1;
SELECT count() FROM sensor_local;

This trades latency for "no stale reads".

7. Failure scenarios and recovery

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "Failure scenarios and recovery".

Here is a brief excerpt from the material I'm reading:

"""
### Scenario A — one replica down What happens: - Reads silently route to the other replica (zero impact). - Writes still succeed (one-replica write); other replica's queue grows. - ZK shows the replica's `is_active` ephemeral node disappear. Recovery: - `docker start m4-s1r2` (or fix the host). - `SYSTEM SYNC REPLICA sensor_local;` on the recovered replica. - Verify `system.replicas.absolute_delay = 0`. ### Scenario B — replica disk loss What happens: the replica's `/var/lib/clickhouse/data` is gone. ZK still knows it as a registered replica. Recovery (the demo's drill 4 in M8): 1. From a pee...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Scenario A — one replica down

What happens: - Reads silently route to the other replica (zero impact). - Writes still succeed (one-replica write); other replica's queue grows. - ZK shows the replica's is_active ephemeral node disappear.

Recovery: - docker start m4-s1r2 (or fix the host). - SYSTEM SYNC REPLICA sensor_local; on the recovered replica. - Verify system.replicas.absolute_delay = 0.

Scenario B — replica disk loss

What happens: the replica's /var/lib/clickhouse/data is gone. ZK still knows it as a registered replica.

Recovery (the demo's drill 4 in M8): 1. From a peer: SYSTEM DROP REPLICA 'm4-s1r2' FROM TABLE sensor_local; This removes the dead replica's record from ZK. 2. On the wiped node: DROP TABLE sensor_local SYNC; (table metadata is gone with the disk; this clears any in-memory remnants). 3. On the wiped node: re-create the table with the same ZK path. 4. SYSTEM SYNC REPLICA sensor_local; — the engine pulls all parts from peers via the interserver port.

Scenario C — ZK quorum lost

What happens: replicated tables go read-only on every node. INSERTs fail with Cannot allocate block number in ZooKeeper.

Recovery: restore ZK quorum (3-of-5 or 2-of-3 ZK nodes). CH automatically recovers when ZK is reachable again.

Don't let ZK be the single point of failure. Run 3 (small clusters) or 5 (big clusters) ZK / Keeper nodes across availability zones.

8. ClickHouse Keeper — the future

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "ClickHouse Keeper — the future".

Here is a brief excerpt from the material I'm reading:

"""
Keeper is a **Raft-based ZK clone** that ships in the `clickhouse-server` binary. Same client protocol, same paths. Migrate when convenient: Why move: - One fewer service (Keeper runs in the CH process or as `clickhouse-keeper`). - Better operational tooling (same binary, same logs format). - Active development; ZK feature-frozen. When **not** to move: large existing ZK fleet, complex tooling around it, or a 3rd-party setup that already provides ZK. This demo uses ZooKeeper (image `zookeeper:3.8`) for compatibility. The swap-to-Keeper path is single-line in `docker-compose.yml`.
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Keeper is a Raft-based ZK clone that ships in the clickhouse-server binary. Same client protocol, same paths. Migrate when convenient:

# Snapshot ZK
clickhouse-keeper-converter --zookeeper-logs-dir /var/lib/zookeeper/version-2/ \
                            --zookeeper-snapshots-dir /var/lib/zookeeper/version-2/ \
                            --output-dir /var/lib/clickhouse-keeper/coordination/snapshots/

# Configure CH to point at Keeper instead of ZK (just hostname/port change)
# Restart CH

Why move: - One fewer service (Keeper runs in the CH process or as clickhouse-keeper). - Better operational tooling (same binary, same logs format). - Active development; ZK feature-frozen.

When not to move: large existing ZK fleet, complex tooling around it, or a 3rd-party setup that already provides ZK.

This demo uses ZooKeeper (image zookeeper:3.8) for compatibility. The swap-to-Keeper path is single-line in docker-compose.yml.

9. The hands-on demo

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "The hands-on demo".

Here is a brief excerpt from the material I'm reading:

"""
### Container map | Role        | Container | Host HTTP | Host TCP | | Shard 1 R1  | `m4-s1r1` | 8123      | 9000     | | Shard 1 R2  | `m4-s1r2` | 8124      | 9001     | | Shard 2 R1  | `m4-s2r1` | 8125      | 9002     | | Shard 2 R2  | `m4-s2r2` | 8126      | 9003     | | Shard 3 R1  | `m4-s3r1` | 8127      | 9004     | | Shard 3 R2  | `m4-s3r2` | 8128      | 9005     | | ZK 1/2/3    | `m4-zk1/2/3` | (internal) | | ### Execution flow — what runs, in order | #  | Step                                | What happens...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Container map

Role	Container	Host HTTP	Host TCP
Shard 1 R1	`m4-s1r1`	8123	9000
Shard 1 R2	`m4-s1r2`	8124	9001
Shard 2 R1	`m4-s2r1`	8125	9002
Shard 2 R2	`m4-s2r2`	8126	9003
Shard 3 R1	`m4-s3r1`	8127	9004
Shard 3 R2	`m4-s3r2`	8128	9005
ZK 1/2/3	`m4-zk1/2/3`	(internal)

Execution flow — what runs, in order

#	Step	What happens
0	self-bootstrap	If `m4-s1r1` isn't healthy, `up.sh` brings the 9-container stack up (3 ZK + 6 CH). Tears down peer demo modules first.
1	`setup.sql` (via `m4-s1r1`)	`ON CLUSTER` creates `sensor_local` (ReplicatedMergeTree partitioned by day, ordered by `(sensor_id, ts)`) and a `sensor_distributed` Distributed wrapper on every node.
2	`data.sql` (via `m4-s1r1`)	Inserts 2M rows directly into `sensor_local` on `m4-s1r1` (not via Distributed). On purpose: only one replica writes; we want to watch the other catch up.
3	`SYSTEM SYNC REPLICA sensor_local`	Run on `m4-s1r2`. Blocks until `m4-s1r2` has applied every replication-queue entry. After it returns, both replicas hold identical data.
4	`queries.sql` (via `m4-s1r1`)	Inspects `system.replicas`, `system.replication_queue`, `system.zookeeper` listing of `/clickhouse/tables/01/sensor_local`, and per-replica row counts via `clusterAllReplicas`.
5	Failure drill (in run.sh)	`docker stop m4-s1r2` → insert 500k more rows on `m4-s1r1` → `docker start m4-s1r2` → wait 5s → `SYSTEM SYNC REPLICA` on `m4-s1r2`. Confirms `m4-s1r2.count() == 2.5M` and queue drained.
6	`extras.sql` (via `m4-s1r1`)	Sets `insert_quorum = 2`, `insert_quorum_timeout_ms = 5000`, inserts two rows — succeeds because both replicas are alive. Lists ZK quorum metadata. Toggles `select_sequential_consistency`. Inspects `system.replicas`. Prints a Keeper migration note.

What to look for

Step	What you should see
INSERT to s1r1 only	`s1r2` row count matches after `SYSTEM SYNC REPLICA`.
`system.replicas`	`absolute_delay = 0` once caught up; `is_leader = 1` on whichever replica leads merges.
Stop s1r2, insert 500k	`s1r1.count() = 2.5M`, `s1r2.count() = 2M` (it's stopped).
Restart s1r2 + sync	`s1r2.count() = 2.5M`; `system.replication_queue` empty.
`insert_quorum = 2` works	Both replicas have the new rows immediately on INSERT return.

10. Operational SQL cheatsheet

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "Operational SQL cheatsheet".

Here is a brief excerpt from the material I'm reading:

"""
(no excerpt — section heading was "Operational SQL cheatsheet")
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

-- "Is replication healthy?"
SELECT database, table, replica_name, queue_size, absolute_delay,
       is_leader, is_readonly, last_queue_update_exception
FROM system.replicas
WHERE database NOT IN ('system')
ORDER BY absolute_delay DESC;

-- "What's pending for one replica?"
SELECT type, source_replica, parts_to_merge, new_part_name,
       create_time, last_attempt_time, num_tries, last_exception
FROM system.replication_queue
WHERE database = 'default' AND table = 'sensor_local'
ORDER BY create_time;

-- "Force a stuck replica to retry"
SYSTEM SYNC REPLICA sensor_local;
SYSTEM RESTART REPLICA sensor_local;        -- heavy-handed: re-init from ZK

-- "Drop a dead replica's record from ZK"
SYSTEM DROP REPLICA 'old-host-name' FROM TABLE sensor_local;

-- "What does ZK think the part list looks like?"
SELECT name FROM system.zookeeper
WHERE path = '/clickhouse/tables/01/sensor_local/replicas/m4-s1r1/parts'
ORDER BY name;

11. Common pitfalls

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "Common pitfalls".

Here is a brief excerpt from the material I'm reading:

"""
| Symptom                                                                 | Cause                                                                  | Fix                                                                                                | | `Cannot allocate block number in ZooKeeper`                             | ZK quorum lost.                                                         | Restore ZK; replicated tables auto-recover.                                                       | | `system.replicas.is_readonly = 1` even though everything's running      | ZK session expired and d...
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Symptom	Cause	Fix
`Cannot allocate block number in ZooKeeper`	ZK quorum lost.	Restore ZK; replicated tables auto-recover.
`system.replicas.is_readonly = 1` even though everything's running	ZK session expired and didn't re-establish.	`SYSTEM RESTART REPLICA <table>` on the affected node.
`absolute_delay` stuck at a high value	A queue entry keeps failing to apply (corrupt part, missing source).	`system.replication_queue.last_exception` shows why; usually `DROP PART` + re-`SYNC`.
INSERT fails with `Quorum for previous write has not been satisfied`	Previous quorum INSERT timed out; quorum lock is held in ZK.	Wait `insert_quorum_timeout_ms`, or `SYSTEM CLEAR QUORUM` (newer CH versions).
Two replicas of one shard have different row counts but `absolute_delay = 0`	Wrote to local table on both replicas (bypassing replication).	Don't write directly to local tables on both replicas. Always go via Distributed or one replica.
`Replica … has been already created`	Stale ZK record for a host that was rebuilt with the same name.	`SYSTEM DROP REPLICA '<host>' FROM TABLE <t>;` before recreating.

12. Talking points for the live session

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "Talking points for the live session".

Here is a brief excerpt from the material I'm reading:

"""
1. **ZK stores metadata, not data.** Every part still moves over the interserver port; ZK just coordinates. 2. **Replication is async by default.** Show `SYSTEM SYNC REPLICA` and `system.replicas.absolute_delay`. 3. **The replication queue is a real queue.** Walk through `system.replication_queue` mid-INSERT. 4. **`insert_quorum` is your RPO=0 knob.** Works, but raises tail latency. 5. **Replica disk loss is recoverable.** Demo the `SYSTEM DROP REPLICA` + recreate flow live (Module 8 does this in drill 4). 6. **ZK → Keeper.** Mention the migration. Keep ZK if you have it; new clusters should d...
"""

Please explain this concept in depth. Cover:

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

ZK stores metadata, not data. Every part still moves over the interserver port; ZK just coordinates.
Replication is async by default. Show SYSTEM SYNC REPLICA and system.replicas.absolute_delay.
The replication queue is a real queue. Walk through system.replication_queue mid-INSERT.
insert_quorum is your RPO=0 knob. Works, but raises tail latency.
Replica disk loss is recoverable. Demo the SYSTEM DROP REPLICA + recreate flow live (Module 8 does this in drill 4).
ZK → Keeper. Mention the migration. Keep ZK if you have it; new clusters should default to Keeper.

13. Going deeper

💬 Discuss with AI — click to view prompt

I'm studying ClickHouse and working through the module "ClickHouse Replication & High Availability". I want to deeply understand the section: "Going deeper".

Here is a brief excerpt from the material I'm reading:

"""
- **Module 5** — `ON CLUSTER` DDL coordination (also via ZK). - **Module 8** — destructive failure drills against this same cluster. - ClickHouse docs: <https://clickhouse.com/docs/en/engines/table-engines/mergetree-family/replication>
"""

Please explain this concept in depth. Cover:

1. **Core mechanics** — how does it actually work under the hood? What data structures, algorithms, or engine internals are involved? Where is the implementation in the ClickHouse source tree (file/folder names) if you know?

2. **When to use vs avoid** — what concrete workloads does this help, and when would it hurt or be wrong? Give specific scale/latency trade-offs.

3. **Comparable features in other systems** — how does this compare with similar features in PostgreSQL, MySQL, BigQuery, Snowflake, Redshift, or DuckDB? Build my intuition by analogy.

4. **Common pitfalls and gotchas** — what trips engineers up in production? Subtle bugs, performance traps, surprising semantics?

5. **Worked example** — show me a small but realistic SQL or config example that demonstrates the concept end-to-end. Include the expected output where useful.

6. **Where to read more** — a short list of authoritative pointers (CH docs, blog posts, talks, source-code files).

Assume I have solid SQL fundamentals but I'm new to ClickHouse internals. Be technical but pragmatic; avoid marketing language.

Module 5 — ON CLUSTER DDL coordination (also via ZK).
Module 8 — destructive failure drills against this same cluster.
ClickHouse docs: https://clickhouse.com/docs/en/engines/table-engines/mergetree-family/replication

🔄 MODULE 4

Replication in a Nutshell

Data Redundancy

High Availability

Data Consistency

Read Scaling

ReplicatedMergeTree vs Standard MergeTree

Standard MergeTree

ReplicatedMergeTree

Architecture Diagrams

1. Replication Flow Diagram

2. ClickHouse Keeper Cluster (3 Nodes with Leader Election)

3. ZooKeeper vs Keeper Comparison

⚠️ ZooKeeper (Legacy)

✅ ClickHouse Keeper (Recommended)

4. Failover Sequence Diagram

ClickHouse Keeper vs ZooKeeper

Replica Synchronization Methods

Asynchronous Replication

Quorum Write

1. Set Up ClickHouse Keeper (3 nodes minimum)

2. Configure ClickHouse Replicated Table

3. Insert Data and Watch Replication

4. Set Up Distributed Table (Optional)

5. Enable Quorum Writes for Data Safety

Create Replicated Tables

Replication Status Monitoring

Replica Synchronization Commands

Quorum Write Configuration

Cluster Configuration Commands

1. Keeper/ZooKeeper Setup

2. Partition Strategy for Replicated Tables

3. Data Insertion Strategy

4. Replica Lag Monitoring

Monitor replica lag continuously

5. Quorum Configuration Best Practices

Default (Async)

Safe (Synchronous)

6. Handling Replica Failures

Replica is lagging/offline:

7. Cluster Networking Requirements

Network Setup

Firewall Rules

✅ Use Replication When

❌ Don't Use Replication When

Availability

Failover Time

With Quorum Writes

Replication Cost

Case Study: E-Commerce Analytics Platform

Setup

Results

Cost Analysis

Template 1: Basic 2-Replica Replicated Table

1. Zero-Downtime Rolling Updates

2. Handling Replica Failures Automatically

3. Sharding Strategy for Large Datasets

4. Migrating Non-Replicated to Replicated

📘 View in Notion

📖 Official Documentation

🎓 Learning Resources

🛠️ Tools & Monitoring

💬 Community & Support

Key Takeaways from Module 4

Common Pitfalls to Avoid

Next: Module 5

🐳 Hands-on Docker Demo for this Module

📺 Live demo capture

✨ Animated concept diagrams

🗂️ Architecture diagrams

📚 ClickHouse reference visuals

📚 Full module reference

Module 4 — Replication & High Availability

1. What "replication" means in ClickHouse

2. The replication topology

3. The ZooKeeper schema

log is the source of truth

4. The replication queue lifecycle

5. The system tables you'll live in

6. insert_quorum — synchronous writes when you need them

`log` is the source of truth

6. `insert_quorum` — synchronous writes when you need them
